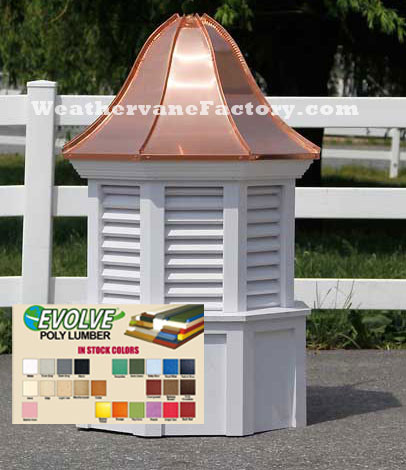

Gilford Color Louvered Cupola - Weathervane Ready
Product Information: PVC Color Cupola made from Evolve Color Lumber
Cupola available sizes - 24", 30", 36", 42" 49", 60", 72" // Roof used for measurements
Board Size: 3/4" Material is PVC ( Brand Name Evolve Lumber)
Copper: 16 oz copper which is the 24 gauge
Cupola Color Metal Roofing: Made by Galvalume, Galvalume is 55% Aluminum -45% Zinc coated Sheet product that is idelly suited for most types of roofing. The metal sheet is heat-fomed to prevent microscopic cracking and the rust preventing paint coating as the panel is formed. This makes for a long lasting finish.
Note: Cupola Metal Roof Colors as as close as possible to actual colors: color shown may vary slightly from actual metal.
This cupola is available in maintenance-free color vinyl is weathervane ready with a 3/4 inch rod opening. Designed for up to a 8/12 pitch. Cupola roof is covered with standing seam copper or metal roofing is available.
Cupola Dimensions: (approx) Cupola Roof used for measurements, Octagon Cupolas are measured from the largest part of the cupola roof which is the flat to flat on this style of cupola.
24" Cupola Dimensions - 24" Roof - 43" High
30" Cupola Dimensions - 30" Roof - 52" High
36" Cupola Dimensions - 36" Roof - 60" High
42" Cupola Dimensions - 42" Roof - 67" High
48" Cupola Dimensions - 48" Roof - 75" High
60" Cupola Dimensions - 60" Roof - 89" High
72" Cupola Dimensions - 72" Roof - 104" High
Special Note: All cupolas are made to order. Cupolas are constructed in a 3 section design for ease of handing and installation
Weathervanes sold separately.
- Cupola Base Extensions are for 9/12 up to 12/12 pitched roof lines.
- The cupola comes weathervane ready with a 3/4" opening. Roof mounts are not needed if using a cupola.
- Customers can request the weathervane opening be capped. For using the cupola without a weathervane.
- The louver cupolas can be used for venting, be sure and have your carpenter flash around base to keep the water and moisture out. Window cupolas are not used for venting.
- If not used for venting, the cupola can go right over the shingles.
- It is the customer’s responsibility to cut the roof pitch into the cupola base to ensure proper fit.
- This Cupola is made from Color Evolove Lumber.
